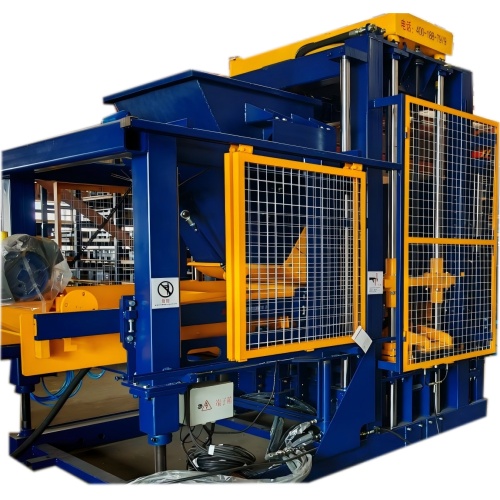

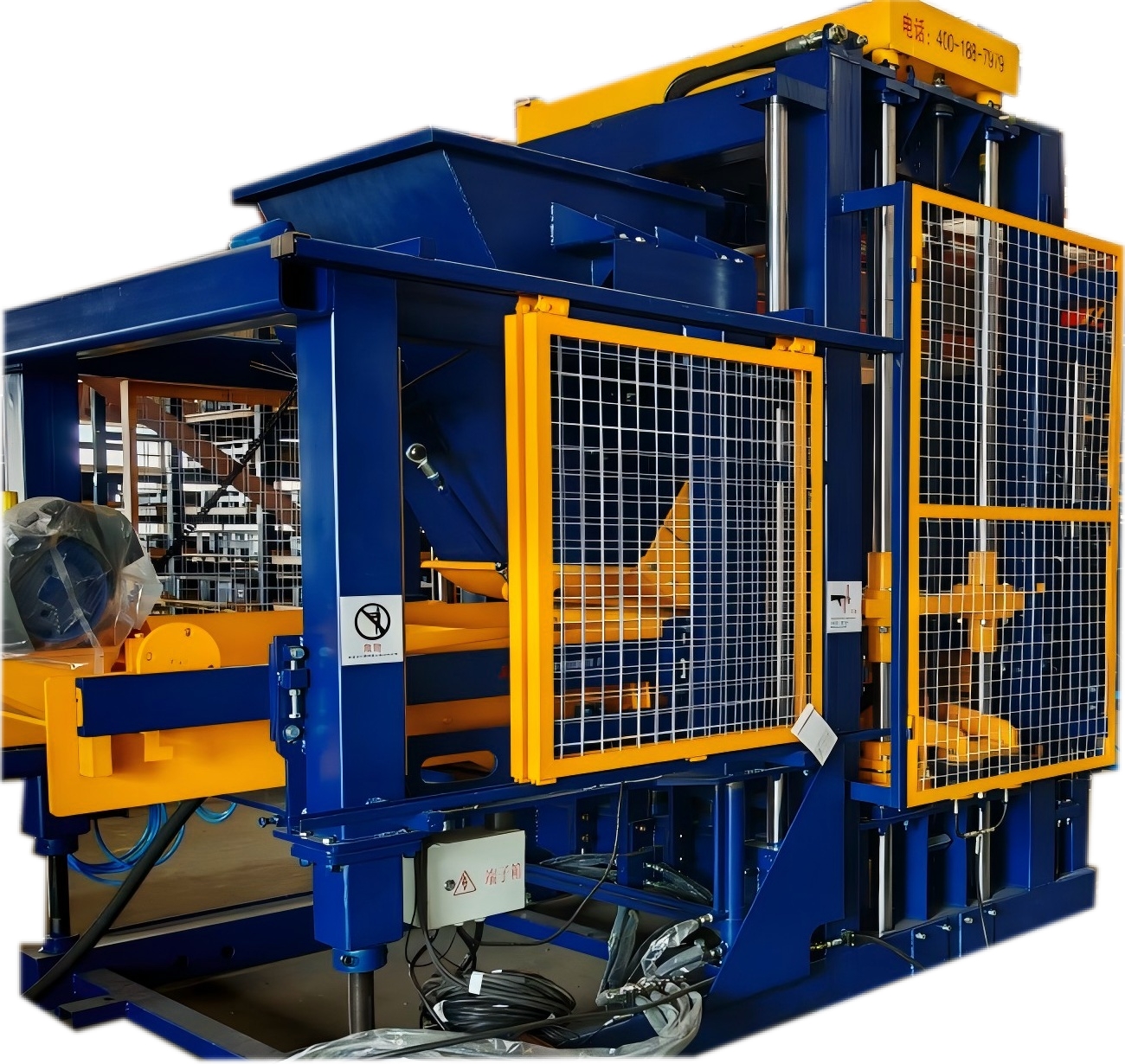

Modelo: QT8
The file is encrypted. Please fill in the following information to continue accessing it
QT8 Principais parâmetros técnicos
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Pallet size | 920×880×(12-40)mm | Control system | fully automatic |
| Product height | 30-300mm | Total Power | About 52Kw |
| Forming area | 850×800mm | Overall dimension | 5650×2500×3200mm |
| Forming cycle | 18-22s(Product-related) | Implementation standard | JC/T920-2011 Block moulding machines for the building materials industry |
| Brick Type | Size (mm) | Pieces per mould | Brick Type | Size (mm) | Pieces per mould |
|---|---|---|---|---|---|
| pavement brick | 100×200 | 28 | S brick | 128×240 | 18 |
| standard brick | 238×51 | 42 | Braille characters | 161×195 | 20 |
| eight-hole brick | 240×115 | 18 | lawn tile | 300×300 | 4 |
| building block | 390×190 | 8 | hollow brick | opposite angle 400 | 4 |
| curbstone | 900×300 | 2 |
